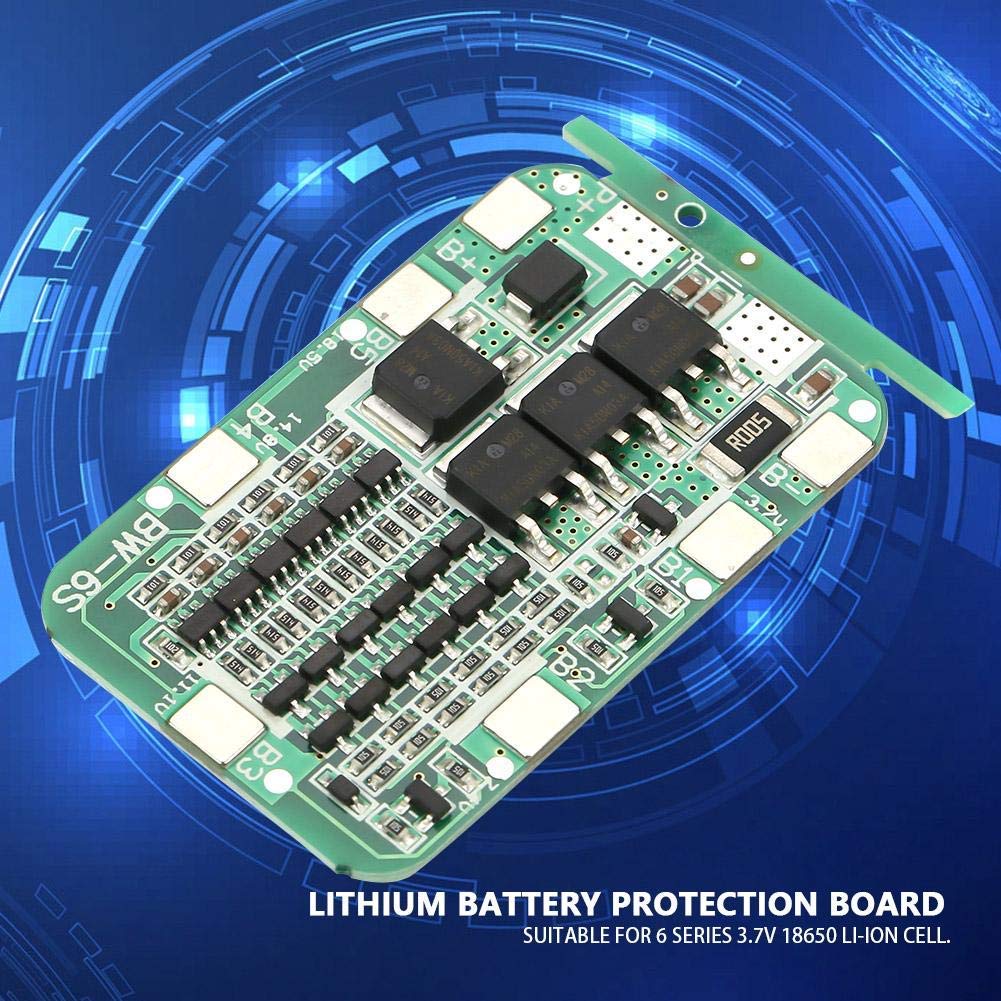

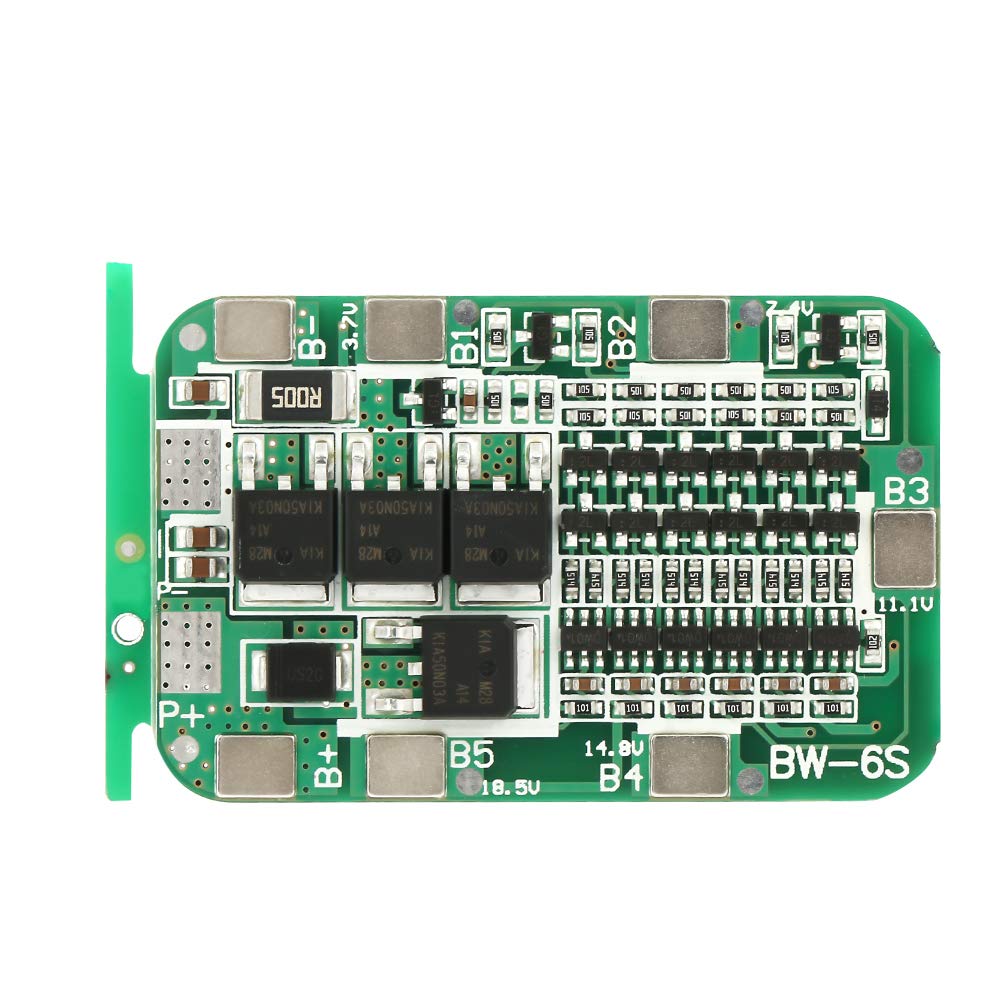

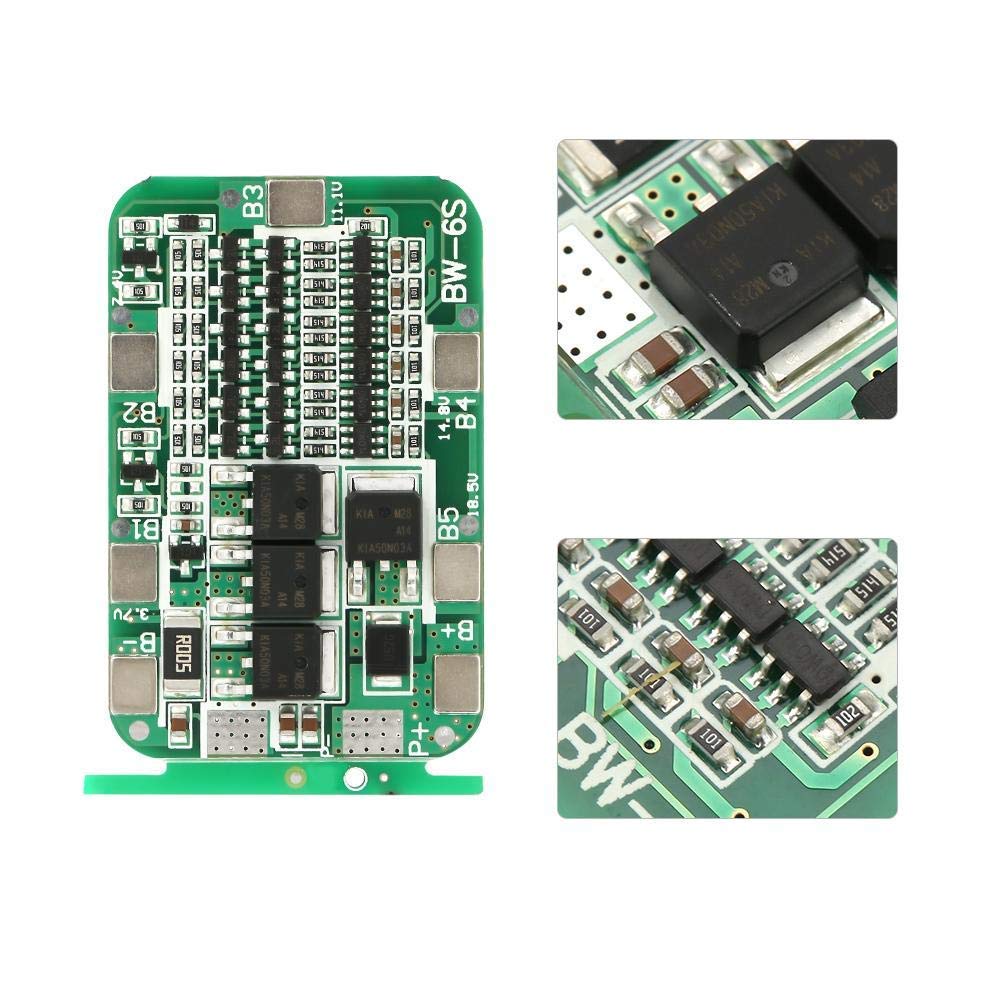

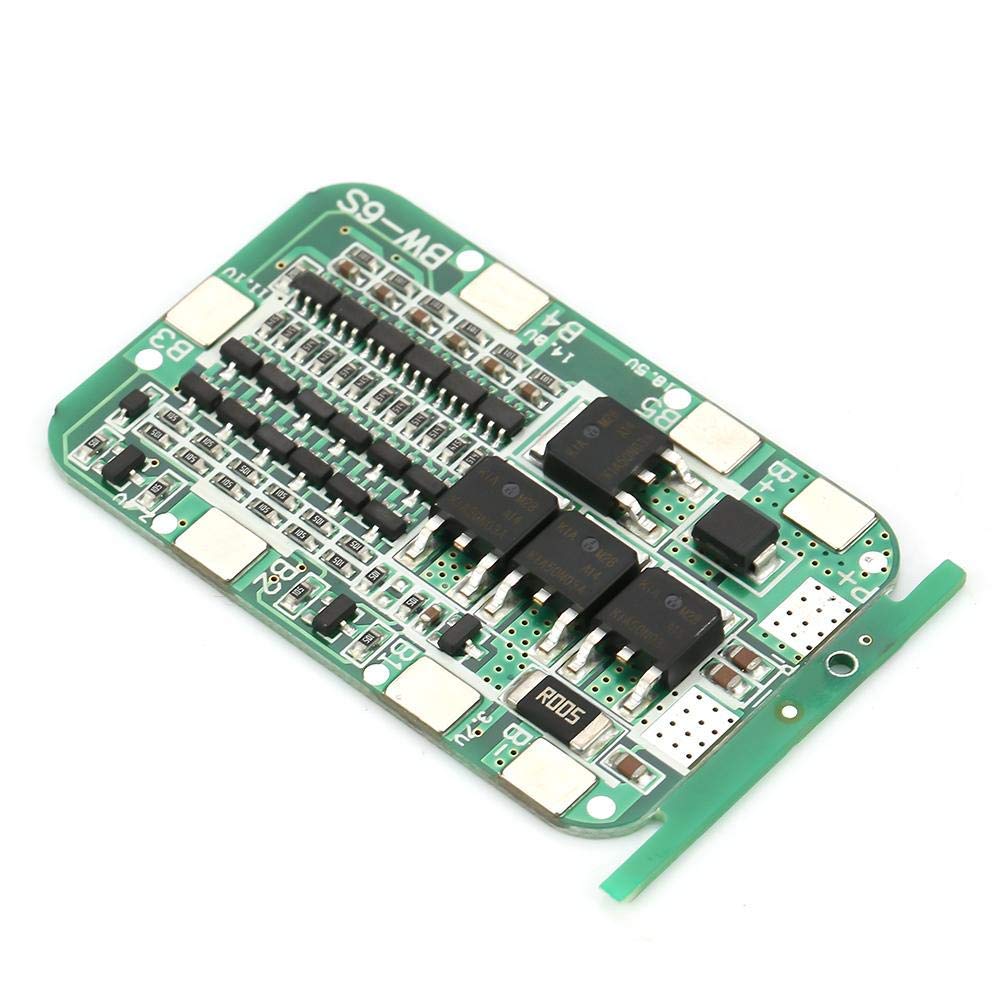

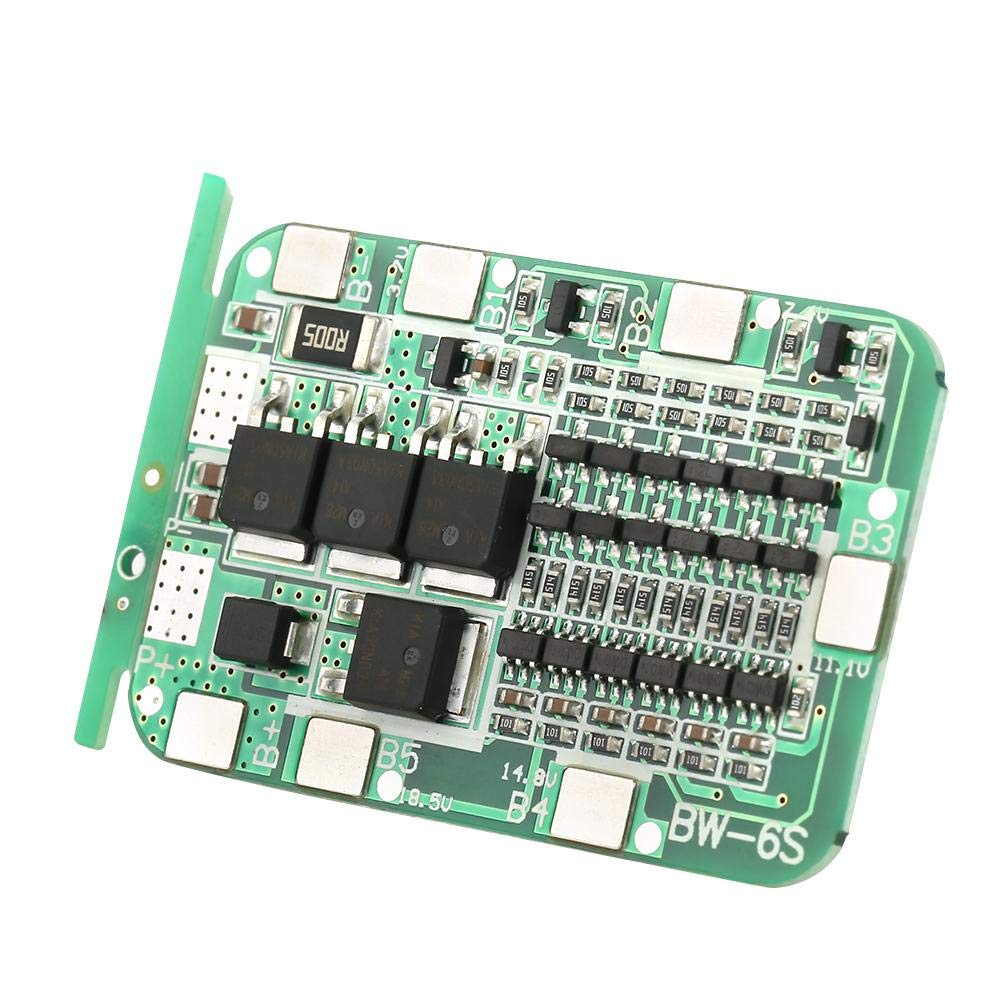

6S 15A 22V 24V Lithium Battery Charging Board PCB Module - Li-ion Battery Protection Circuit for DIY Power Banks, E-Bikes & Solar Energy Storage Systems
Free shipping on all orders over $50
7-15 days international
9 people viewing this product right now!
30-day free returns
Secure checkout
34825201
Description
Features: 1. brand new and high quality. 2. This board is suitable for 6 series 3.7V li-ion cell. 3. Support overcharge , overdischarge , overcurrent and short circuit . 4. The circuit board is made with high quality electronic components, stable and reliable. 5. Quality assurance, long service life. Specification: discharge current: 15A Instantaneous discharge current: 25A voltage: 25.5V Charging current: 15A() Overcharge detection voltage: 4.28±0.05V Overdischarge detection voltage: 2.55±0.08V Overcurrent detection voltage: 150mV Overcurrent current: 30±3A Working current: ?30uA Sleep current (when overdischarge): ?10uA Working temperature: -30~80? Size: 50*32mm/1.97*1.26in Package weight: Approx. 7g Package List: 1 * Board for Lithium Battery
Features
Premium Quality Material Ensures Longer Service This Lithium Battery Board is made of brand new and high quality material ensures longer service
Multiple Function Ensures Safety This Lithium Battery Charging Board has variety functions, such as supports overcharge , over-discharge , over-current and short circuit
Provides Stable and Working Experience The circuit board is made with high quality electronic components, stable and

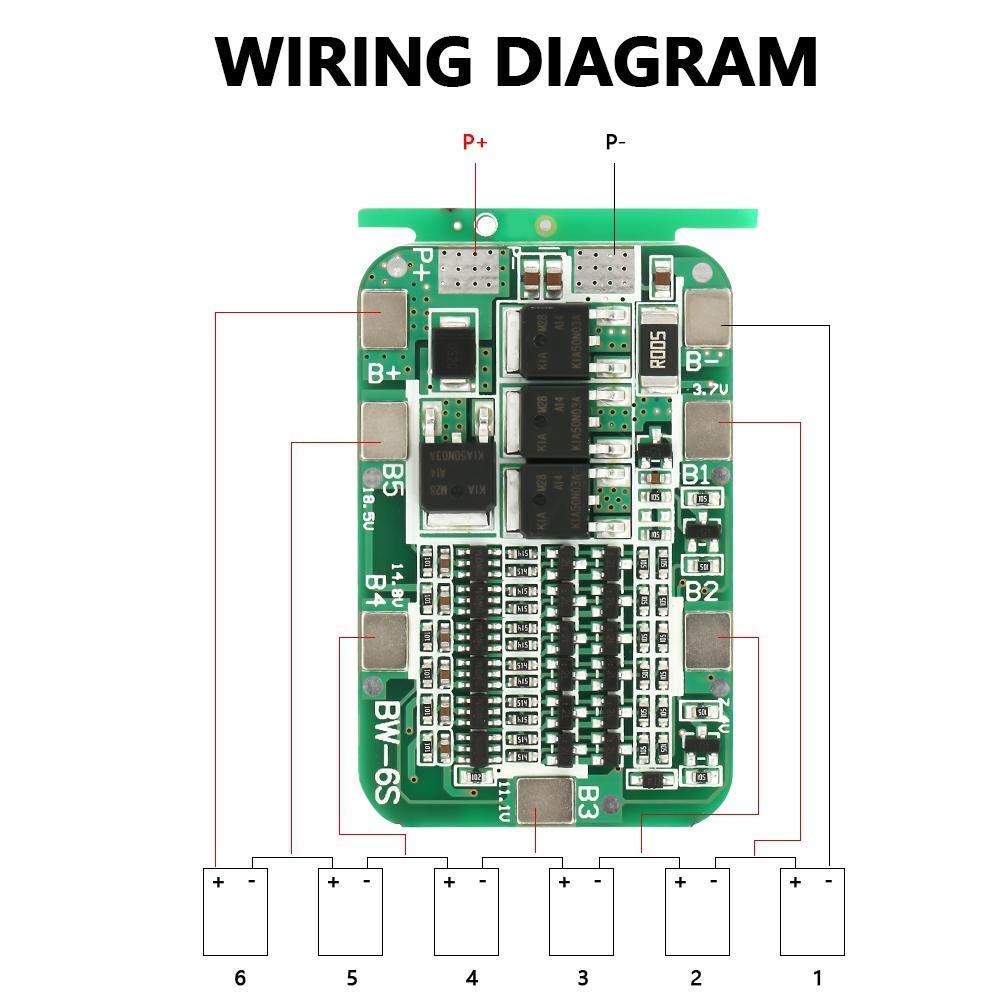

Board for 6 Series Li-ion Cell This PCB Board is suitable for 6 series 3.7V Li-ion cell
Quality Assurance Quality assurance, long service life
